Integrated Water Solutions in Guinea
Implementation Highlights
1. Completed within 18 weeks despite logistical challenges 2. Local workforce training program (12 technicians certified) 3. Modular design enabling future capacity expansion 4. Smart PLC control system with remote monitoring capabilities
Project Overview
We successfully delivered a dual-purpose water solution addressing critical water challenges in Guinea, West Africa, comprising: 4 Ton/Hour RO Potable Water System 20 Ton/Hour Domestic Sewage Treatment Facility
Technical Solutions

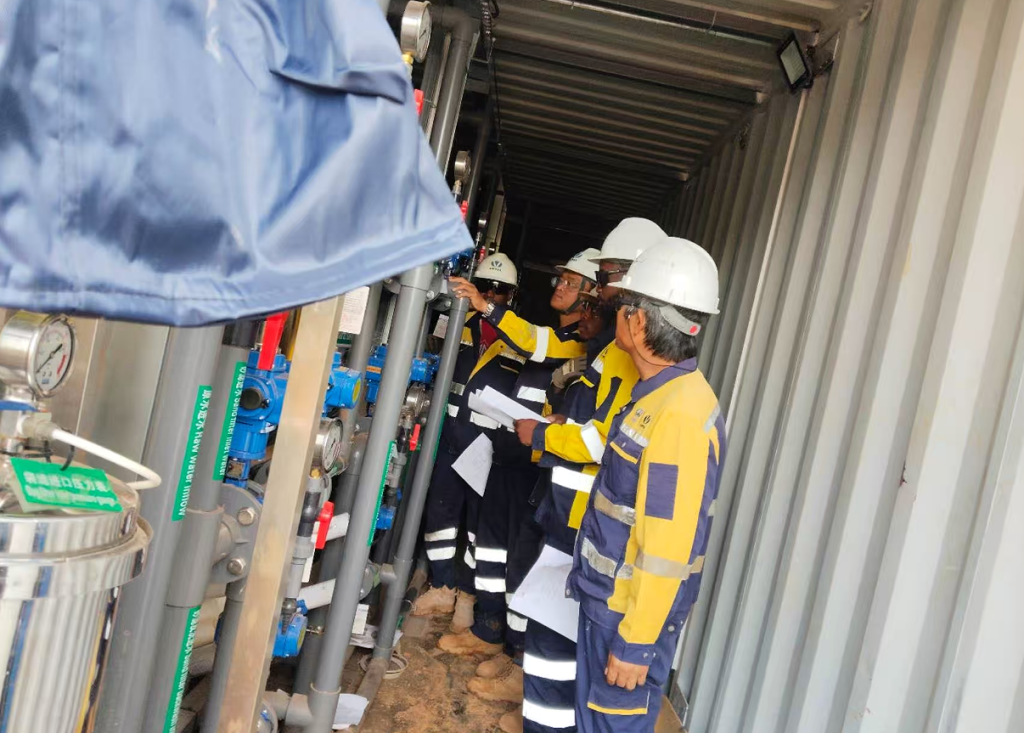

2.1 Reverse Osmosis Drinking Water System Capacity: 4 m³/h (96 m³/day) Process Flow: Raw water → Multimedia filtration → Activated carbon adsorption → Precision filtration → High-pressure RO system → UV sterilization → Potable water storage 2.2 Wastewater Treatment System Capacity: 20 m³/h (480 m³/day) Treatment Process: Sewage collection → Screening & grit removal → Anaerobic reactor → MBR (Membrane Bio-Reactor) → Disinfection → Reclaimed water reuse
4. Environmental & Social Impact
- Provides safe drinking water for 2,500+ residents daily
- Reduces groundwater contamination risks by 90%
- Enables agricultural reuse of 70% treated wastewater
- Cut waterborne disease incidence by 60% within six months
